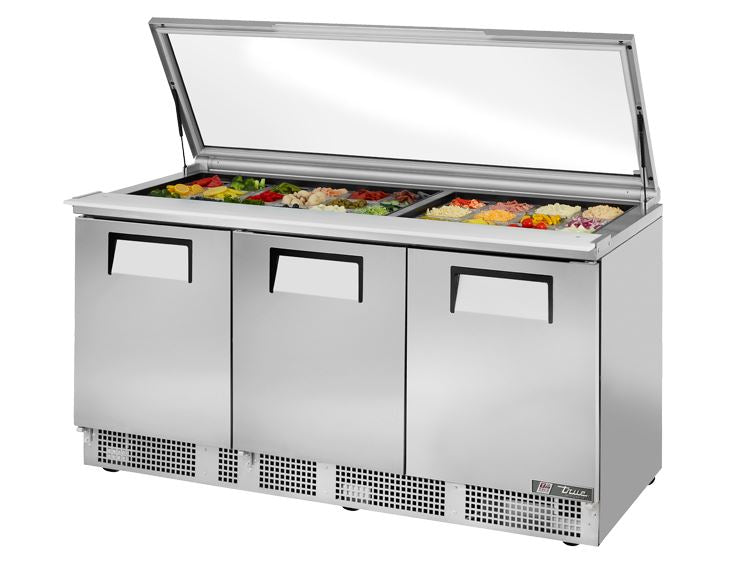

True Refrigeration TFP-72-30M-FGLID Description
Using R134A refrigerant, this True TFP-72-30M-FGLID prep table maintains temperatures between 33 and 41 degrees Fahrenheit, while a capillary tube system regulates the flow of refrigerant and is self-contained, so it does not need extra tubing. Its food pan area is furnished with 30 sixth-size pans, and guided airflow ensures food is kept cold. For corrosion resistance, the evaporator is coated in epoxy, and its condensing unit can be accessed from the back. To efficiently move a high volume of air, this prep table has large fan blades and a high-efficiency evaporator fan motor.
This True TFP-72-30M-FGLID prep table has a stainless steel and aluminum construction, both of which provide corrosion and dent resistance. For structure and cold air retention, its walls are insulated with polyurethane foam, and this prep table has three stainless steel doors with six PVC-coated wire shelves to hold product. Each door has a 12-inch-long recessed handle for comfort and magnetic gaskets to seal cold air inside. An 8-inch-deep cutting board spans the width of the table and offers a space for crafting salads and sandwiches as well as prepping ingredients.
Product Details
- Stainless steel exterior top, front, and ends have a GalFan-coated steel back for corrosion resistance
- Clear-coated aluminum interior and stainless steel floor have coved corners to facilitate cleanup
- Foamed with polyurethane insulation for structure and temperature retention
- 21⁄2-in.-diameter castors with locking front set
- Solid state electronic controls can be accessed on the back
- 3 stainless steel doors have 12-in.-long recessed handles
- 1-piece magnetic gaskets seal cold air inside
- 6 PVC-coated wire shelves support product
- 8-in.-deep, polyethylene cutting board provides a space for crafting meals
- Flat glass lid insulates f
- ood pan area and reduces condensation
- Furnished with 30 sixth-size food pans
Refrigeration System
- Self-contained capillary tube system regulates the flow of R134A refrigerant
- Temperature holding range: 33-41 degrees F
- Guided airflow uniformly circulates air around food pan area
- Large fan blades and high-efficiency evaporator fan motor consistently move a high volume of air
- Condensing unit is rear accessible
- Epoxy-coated evaporator resists corrosion
Dimensions & Utilities
- Pan size: 67⁄8-in. L x 61⁄4 in. W x 4 in. D
- Left and right shelves: 211⁄2 in. W x 20 in. D
- Center shelves: 23 in. W x 20 in. D
- Overall: 721⁄2 in. W x 341⁄2 in. D x 38 in. H (595⁄8 in. H when lid is open)
- 5.1 A, 1⁄3 HP
- 115 V/60 Hz/1 ph, 7-ft. cord with a NEMA 5-15P plug
True Refrigeration TFP-72-30M-FGLID Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| Cutting Board Depth (in) | 8 |
| Depth (in) | 34.5 |
| Door Type | Solid |
| Front Access | Door |
| Height (in) | 38 |
| Hertz | 60 |
| Sections | 3 |
| Type | Standard |
| Use | Sandwich/Salad |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Compressor |
| Width (in) | 72.13 |
| Series | TFP Series |
| Refrigerant | R-134a |
| No. of Doors | 3 |
| Phase | 1 |
| Rating | Better |
| Product | Prep Tables |
| Product Type | Commercial Refrigeration |
| Hinge Configuration | Left/Right |
| Includes | Food Pans |
| Max Pan Depth (in) | 4 |
