Description
True Refrigeration TOAM-72-HC~NSL01 Description

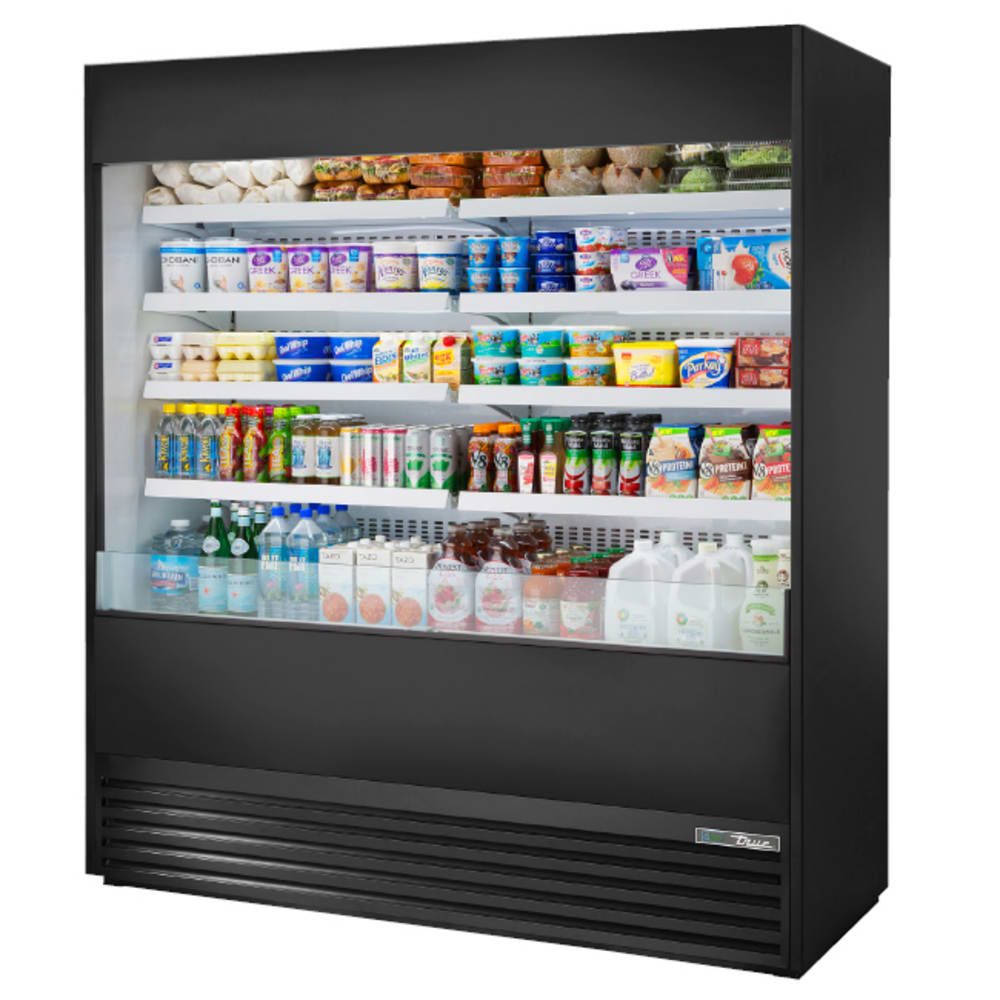

Durable and corrosion resistant, the True TOAM-72-HC~NSL01 vertical open-air cooler features a black powder-coated exterior and a white aluminum interior liner with a stainless steel floor and deck pans. To facilitate product organization, it's equipped with eight powder-coated cantilever shelves, and LED interior lighting improves visibility and highlights displayed products. Reducing energy consumption during idle hours, a night cover is included. This unit measures 72 inches wide by 291⁄8 inches deep by 781⁄2 inches high overall.
Operating with environmentally friendly R290 hydrocarbon refrigerant, the True TOAM-72-HC~NSL01 air curtain merchandiser maintains temperatures between 33 and 40 degrees Fahrenheit. Its refrigeration system is self-contained, making it fast and simple to install. To ensure cold air remains in the cabinet, it's insulated with foamed-in place polyurethane, and the unit's leg levelers maintain stability on uneven flooring. Optimizing performance and improving efficiency, it features a reversing condenser fan motor that blows dust and debris off the condenser coil.
Product Details
- Black powder-coated steel exterior provides durability
- 8 solid, white powder-coated cantilever shelves
- Shelves are adjustable
- LED lighting brightens interior
- LED light strip on shelves
- Night cover included
- Break-resistant lower glass front panel
- Open front offers unobstructed access to displayed items
- Temperature holding range: 33-40 degrees F
- Foamed-in-place, high-density polyurethane insulation retains cold air
- White aluminum interior liner with stainless steel floor and deck pans
- Self-contained refrigeration system simplifies installation
- Environmentally friendly R290 hydrocarbon refrigerant
- Reversing condenser fan motor blows dirt and dust off condenser coil
- Leg levelers maintain stability
Dimensions & Utilities
- 72 in. W x 291⁄8 in. D x 781⁄2 in. H
- 14.9 A, (3) 3⁄4 HP
- 208-230 V/60 Hz/1 ph, 10-ft. cord with a NEMA 6-20P plug
True Refrigeration TOAM-72-HC~NSL01 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| Color | Black |
| Compressor Location | Bottom |
| Compressor Type | Self Contained |
| Depth (in) | 29.13 |
| Design | Vertical |
| Height (in) | 78.5 |
| Hertz | 60 |
| Number of Levels | 5 |
| Special Features | LED Lighting |
| Special Features | Adjustable Shelf Angle |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor; 7-year Compressor |
| Width (in) | 72 |
| Series | TOAM Series |
| Refrigerant | R290 (Hydrocarbon) |
| Phase | 1 |
| Rating | Better |
| Product | Open Air Coolers |
| Product Type | Commercial Refrigeration |
| Service Type | Self Service |
| Weight | 805.00 |
