Description
True Refrigeration TPP-AT-119D-4-HC Description

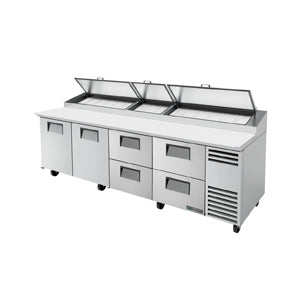

Specifically for prepping pizzas, the True TPP-AT-119D-4-HC prep table has a pan section that accommodates 15 third-size pans, each of which can hold a different ingredient. These products can be added to pizza dough on the full-length, 19.5-inch-deep cutting board that is made of polyethylene and can be removed to simplify cleaning. Insulated lids cover the pans to prevent cold air from escaping, locking in freshness and minimizing condensation buildup. With two door sections and four drawer sections, the cabinet base provides storage space for additional pans. Each door section has two adjustable wire shelves, while the drawers hold full-size, 8-inch-deep pans. Every door and drawer has recessed, 12-inch-long handles that do not protrude into the aisle and take up space.
In the True TPP-AT-119D-4-HC prep table, the temperature ranges from 33 to 41 degrees Fahrenheit and can be specifically set by operators to accommodate different types of food. Airflow in the unit is forced and has a guided pattern that ensures the pan rail and cabinet operate at the same level. Meaning it does not require clearance on the side or rear, the refrigeration system is front breathing, enabling users to access the condensing unit at the front for cleaning and servicing.
Alongside regular maintenance, the reverse condensing fan motor ensures the unit operates at peak efficiency. It works by removing dirt, dust, and debris from the condensing coil, blowing in reverse for 20 seconds each time the compressor starts. This feature helps extend the unit's lifespan and provide cold temperatures to stored product.
Product Details
- 15 third-size pans in the pan rail section
- Foam-insulated stainless steel lids over the pans retain cold air to maintain product freshness
- Removable, polyethylene cutting board is wide enough to accommodate pizzas
- Cabinet base has 2 doors and 4 drawers
- 4 adjustable wire shelves
- Drawers each hold (2) 12-in. x 20-in. x 8-in.-deep pans (not included)
- 1-piece door and
- drawer gaskets can be removed without tools
- 12-in. recessed door and drawer handles
- Removable, stainless steel drawer slides increase structural strength
- Temperature holding range: 33-41 degrees F
- Guided airflow pattern keeps the temperature in the pan rail and cabinet base uniform
- Front-breathing design with slide-out, accessible condenser behind the front panel
- Automatic reverse condensing fan motor blows dirt off the condensing coil
- R290 hydrocarbon refrigerant
- Stainless steel exterior top, front, and sides
- Aluminum interior with stainless steel floor
- Foamed-in-place polyurethane insulation keeps cold air around product
- 5-in.-diameter castors
Dimensions & Utilities
- Cutting board: 1191⁄4 in. W x 191⁄2 in. D
- Overall: 1191⁄4 in. W x 363⁄8 in. D x 445⁄8 in. H
- 7.1 A, 3⁄4 HP
- 115 V/60 Hz/1 ph, NEMA 5-15P plug
True Refrigeration TPP-AT-119D-4-HC Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| Cutting Board Depth (in) | 19.5 |
| Depth (in) | 36.38 |
| Door Type | Solid |
| Front Access | Door/Drawer |
| Height (in) | 44.63 |
| Hertz | 60 |
| Number of Drawers | 4 |
| Sections | 4 |
| Type | Standard |
| Use | Pizza |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 7-year Compressor |
| Width (in) | 119.25 |
| Series | TPPAT Series |
| Refrigerant | R290 (Hydrocarbon) |
| No. of Doors | 2 |
| Phase | 1 |
| Rating | Better |
| Product | Prep Tables |
| Made in USA | Yes |
| Product Type | Commercial Refrigeration |
| Hinge Configuration | Left/Right |
| Includes | Food Pans |
| Max Pan Depth (in) | 6 |
| Weight | 725.00 |
