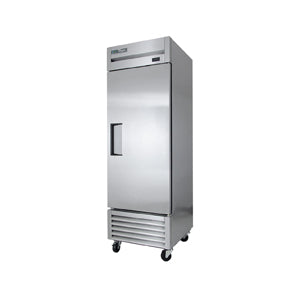

True Refrigeration TS-23F-HC Description
This True TS-23F-HC reach-in freezer is ideal for small venues or businesses with limited available space, and its solid stainless steel door has a durable door hinge with a permanently attached handle. Because the handle is recessed, it lowers the risk of denting nearby equipment. To resist corrosion, the exterior is constructed of stainless steel with a GalFan-coated steel back, while the interior is made of stainless steel, which is scratch and rust resistant. Stability is provided by the steel frame rail, and structure is created by the foamed-in-place polyurethane insulation. Three PVC-coated shelves can be adjusted in 1⁄2-inch increments to accommodate different sizes of products.
Because the refrigeration system is bottom mounted, users can store rarely used supplies on top of the unit. This low placement also lifts the interior floor, so stooping is not needed to reach products. Frozen foods are kept at -10 degrees Fahrenheit by the R290 hydrocarbon refrigerant and a capillary tube system. A consistent airflow is created with the reliable evaporator and condenser fans, and to prevent products from blocking the airflow, guards are in the back of the cabinet. The automatic defroster ensures the True TS-23F-HC reach-in freezer runs properly and reduces the need for excessive maintenance.
When the condenser fan motor in this unit starts up, it reverses for 20 seconds to blow debris, dust, and dirt off the condensing coil. Because this coil is integral to system operation, it should be cleaned regularly for reliabl
e and efficient functioning. This self-cleaning feature also helps to maintain cold, consistent cabinet storage temperatures. Even though this reversing motor doesn't eliminate the need for routine preventative maintenance, it extends the units lifespan and reduces energy use.
Product Details
- Part of the TS series
- Bottom-mounted condensing unit simplifies maintenance
- Uses R290 hydrocarbon refrigerant that is eco-friendly
- Operating temperature: -10 degrees F
- Automatic defrost system keeps the unit running smoothly
- Epoxy-coated evaporator resists corrosion
- Electronically commutated fan motors create less heat and use less energy than traditional motors
- Reversing condenser fan motor runs in reverse for 20 seconds to remove dust from coil
- Airflow guards prevent products from blocking open airflow
- 3 PVC-coated shelves are adjustable in 1⁄2-in. increments to accommodate various products
- Interior lights help users see in the cabinet
Cabinet Construction
- Front and sides are stainless steel with a GalFan-coated steel back to resist rust
- Stainless steel interior is corrosion resistant and quick to clean
- Cold air stays inside with foamed-in-place polyurethane insulation
- Black powder-coated steel frame rail provides stability
- 4-in. castors can move the unit for cleaning underneath
- Front pair of castors lock to keep unit in place
Door Construction
- Insulated stainless steel door traps cold air in the cabinet
- Deter unwanted access with the standard lock
- Opening the door is comfortable with 12-in.-long, recessed handle
- Cold-air leaks are prevented with magnetic door gaskets
Dimensions & Utilities
- Shelves: 227⁄8 in. W x 231⁄4 in. D
- Overall: 27 in. W x 291⁄2 in. D x 835⁄16 in. H
- 3.7 A, 1⁄2 HP
- 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug
True Refrigeration TS-23F-HC Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| Also Known As | TS23F, TRUTS23F, 890TS23F, TS-23F, TRUE TS-23F, 675-063, TS-23F-HC |
| Amps | 3.7 |
| Color | Silver |
| Compressor Location | Bottom |
| Depth (in) | 29.5 |
| Door Design | Full |
| Door Type | Solid |
| Exterior Construction | Stainless Steel |
| Height (in) | 83.38 |
| Hertz | 60 |
| Interior Construction | Stainless Steel |
| Sections | 1 |
| Supports | Casters |
| Thermometer Type | Digital |
| Type | Reach In |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 7-year Compressor |
| Width (in) | 27 |
| Series | TS Series |
| Refrigerant | R290 (Hydrocarbon) |
| Phase | 1 |
| Rating | Best |
| Product | Reach-In Freezers |
| Product Type | Commercial Refrigeration |
| NEMA | 5-15P |
| Hinge Configuration | Right |
| Weight | 315.00 |
