Description
True Refrigeration TS-49F-HC Description

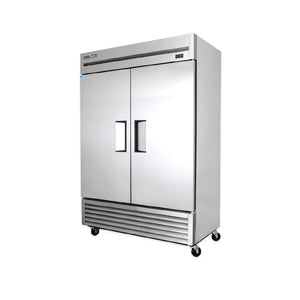

The True TS-49F-HC two-section freezer has six adjustable, PVC-coated shelves to organize product and LED lights to illuminate the interior. Its doors open comfortably with their 12-inch recessed handles, and gaskets around the doors prevent cold-air leaks. Polyurethane insulation in the walls retains cold air, while structure is provided by the steel frame rail. To resist rust, scratches, and dents, this refrigerator's exterior and interior are made of stainless steel.
Because the refrigeration system is mounted on the bottom, it is convenient to service, and the interior floor is raised to a comfortable height. Its capillary tube system uses R290 hydrocarbon refrigerant to keep the temperature cool, which is maintained at -10 degrees Fahrenheit. To ensure products are chilled, evaporator and condenser fans provide consistent airflow throughout the cabinet. For corrosion resistance, epoxy covers the evaporator, and to prevent frost, the system defrosts automatically. This True TS-49F-HC two-section freezer has a digital display for effortlessly monitoring the temperature.
Engineered to effectively remove debris and dust from the condenser coil, this unit's fan motor has a reverse mode that runs for 20 seconds every time it starts up. By regularly cleaning this coil, the system reduces energy consumption, promotes efficient operation, and keeps storage temperatures cold and consistent. Although this self-cleaning offers numerous benefits to the refrigeration system, it doesn’t replace True's recommendations for routine maintenance.
Product Details
- Coated stainless steel exterior is durable
- Interior liner and floor are made of stainless steel to promote cleaning
- Steel frame rail adds structural strength to the cabinet
- High-density, foamed-in-place polyurethane insulation retains cold air
- 2 doors close by themselves to keep cold air inside
- 12-in. recessed handles facilitate opening
- Prevent cold-air leaks with gaskets on the doors
- 6 PVC-coated, adjustable shelves
- Included shelf clips to stabilize the shelves
- LED lights shine on product for visibility
- 4-in. castors provide mobility
Bottom-mounted Refrigeration System
- R290 hydrocarbon refrigerant is used by the capillary tube system
- Operating temperature: -10 degrees F
- Digital temperature display is effortless to read
- Corrosion-resistant evaporator is epoxy coated
- Efficient evaporator and condenser fans save energy
- Condenser fan motor runs in reverse for 20 seconds every time it turns on, blowing dust off coil
- Maintenance is convenient because the system is mounted on the bottom
Dimensions & Utilities
- Shelves: 249⁄16 in. W x 223⁄8 in. D
- Overall: 541⁄8 in. W x 291⁄2 in. D x 835⁄16 in. H
- 9.6 A, 1 HP
- 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug
True Refrigeration TS-49F-HC Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| Also Known As | TS-49F, TRUE TS-49F, TS49F, 890TS49F, TRUTS49F, 675-065 |
| Amps | 9.6 |
| Color | Silver |
| Compressor Location | Bottom |
| Depth (in) | 29.5 |
| Door Design | Full |
| Door Type | Solid |
| Exterior Construction | Stainless Steel |
| Height (in) | 83.38 |
| Hertz | 60 |
| Interior Construction | Stainless Steel |
| Sections | 2 |
| Supports | Casters |
| Thermometer Type | Digital |
| Type | Reach In |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 7-year Compressor |
| Width (in) | 54.13 |
| Series | TS Series |
| Refrigerant | R290 (Hydrocarbon) |
| Phase | 1 |
| Rating | Best |
| Product | Reach-In Freezers |
| Product Type | Commercial Refrigeration |
| NEMA | 5-15P |
| Hinge Configuration | Left/Right |
| Weight | 515.00 |
