Description

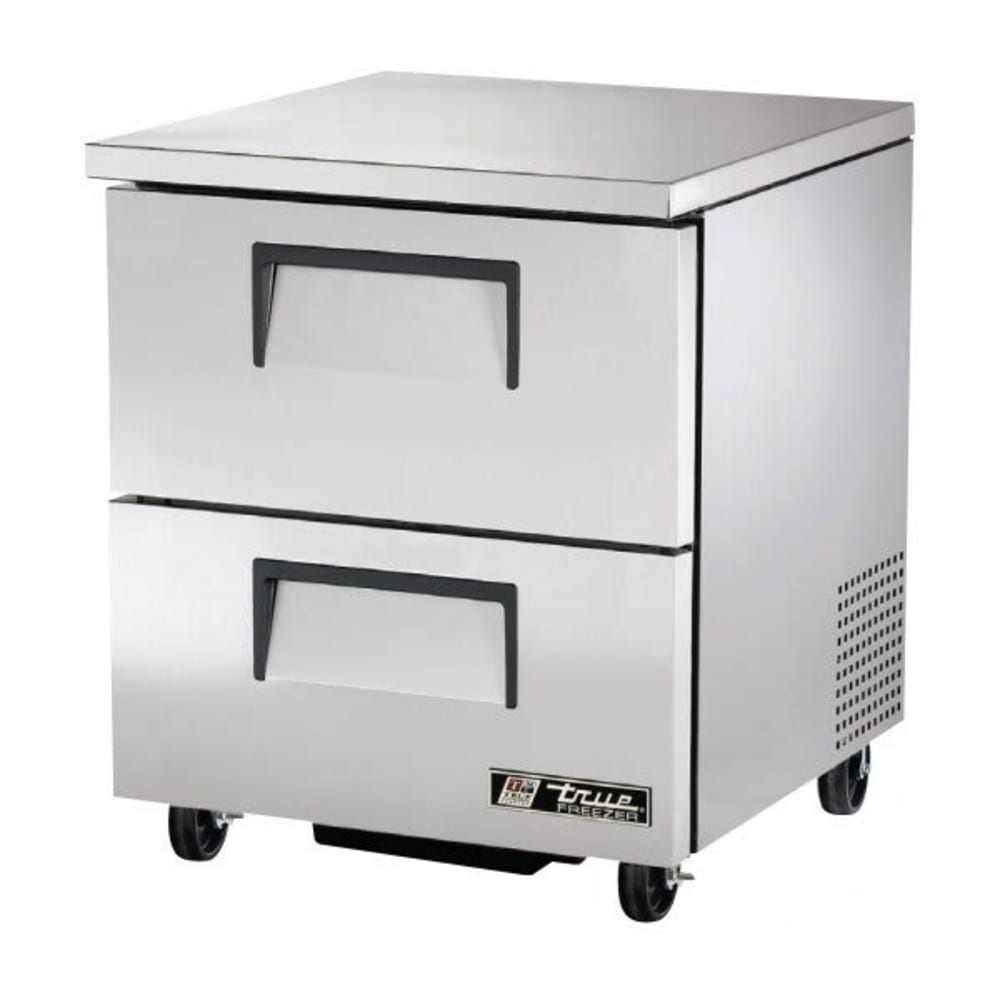

True Refrigeration TUC-27F-D-2-HC Description
To provide uniform temperatures, the True TUC-27F-D-2-HC undercounter freezer has an oversized refrigeration system with a factory-balanced design that efficiently guides airflow. Its slide-out condensing unit is accessible from the back, while the high-capacity system maintains -10 degrees Fahrenheit, which is ideal for ice cream and frozen foods. Time-initiated and time-terminated, an automatic defrost cycle eliminates buildup on the internal components to reduce the risk of a malfunction.
This True TUC-27F-D-2-HC drawered undercounter freezer's capillary tube system is self-contained and uses R290 hydrocarbon refrigerant—an alternative to less eco-friendly refrigerants. Its evaporator and condenser fan motors are electronically commutated, ensuring efficiency with little energy consumption and heat production. To improve condensing coil function, the condensing fan motor automatically cleans off its surface when the compressor starts up. By blowing in reverse for 20 seconds, it can help eliminate debris, enabling the coil to work more efficiently over time, which can help increase unit lifespan. Users should carry out preventive maintenance to ensure the coil and its components are working correctly over time.
Product Details
- 36-in. work surface height
- Locks on front set of 5-in.-diameter stem castors hold the unit in place
- Stainless steel front, top, and sides resist scratching and rusting
- Steel back is coated in corrosion-resistant GalFan
- 2 drawers
- Drawer slides and rollers are constructed of heavy-duty stainless steel and are detachable for cleaning
- (1) 12-in. L x 20-in. W x 6-in. D food pan per drawer (pans sold separately)
- Recessed, 12-in.-long drawer handles are foamed in place on each drawer with sheet metal interlock
- Interior is lined with clear-coated aluminum
- Stainless steel interior floor has coved corners that do not have crevices, easing cleanup
- Drawer facings, liners, and frames are made of stainless steel
- Magnetic drawer gaskets have a seamless construction and are removable without tools to ease cleanup process
- Foamed-in-place polyurethane insulation provides cold-air retention
Oversized Refrigeration System
- Guided airflow in factory-balanced design provides uniform product temperatures
- Back of cabinet provides access to condensing unit
- Operating temperature: -10 degrees F
- Automatic defrost system is time-initiated and time-terminated
- Uses R290 hydrocarbon refrigerant
- Electronically commutated, efficient evaporator and condenser fan motors move air consistently, produce little heat, reduce energy consumption, and provide motor reliability
- Condensing coil cleaned off with reverse condensing fan motor technology
- Corrosion-resistant, epoxy-coated evaporator
Dimensions & Utilities
- 279⁄16 in. W x 311⁄16 in. D x 36 in. H
- 2.3 A, 1⁄4 HP
- 115 V/60 Hz/1 ph, 7-ft. cord with a NEMA 5-15P plug
From The Manufacturer
True Refrigeration TUC-27F-D-2-HC Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| Access | Drawers |
| Also Known As | TUC-27F-D-2, TRUE TUC-27F-D-2, TUC27FD2, TRUTUC27FD2, 890TUC27FD2, TUC-27F-D-2-HC |
| Application | Undercounter Storage |
| Base | Casters |
| Color | Silver |
| Compressor Location | Rear |
| Cubic Feet | 6.5 |
| Depth (in) | 31.13 |
| Height (in) | 36 |
| Hertz | 60 |
| Interior Construction | Aluminum |
| Number of Drawers | 2 |
| Sections | 1 |
| Special Features | Recessed Handles |
| Voltage | 115 |
| Warranty | 3 years parts & labor/7 years compressor |
| Width (in) | 27.63 |
| Series | TUC Series |
| Refrigerant | R290 (Hydrocarbon) |
| Phase | 1 |
| Rating | Better |
| Product | Undercounter Freezers |
| Product Type | Commercial Refrigeration |
| Weight | 220.00 |
