Description

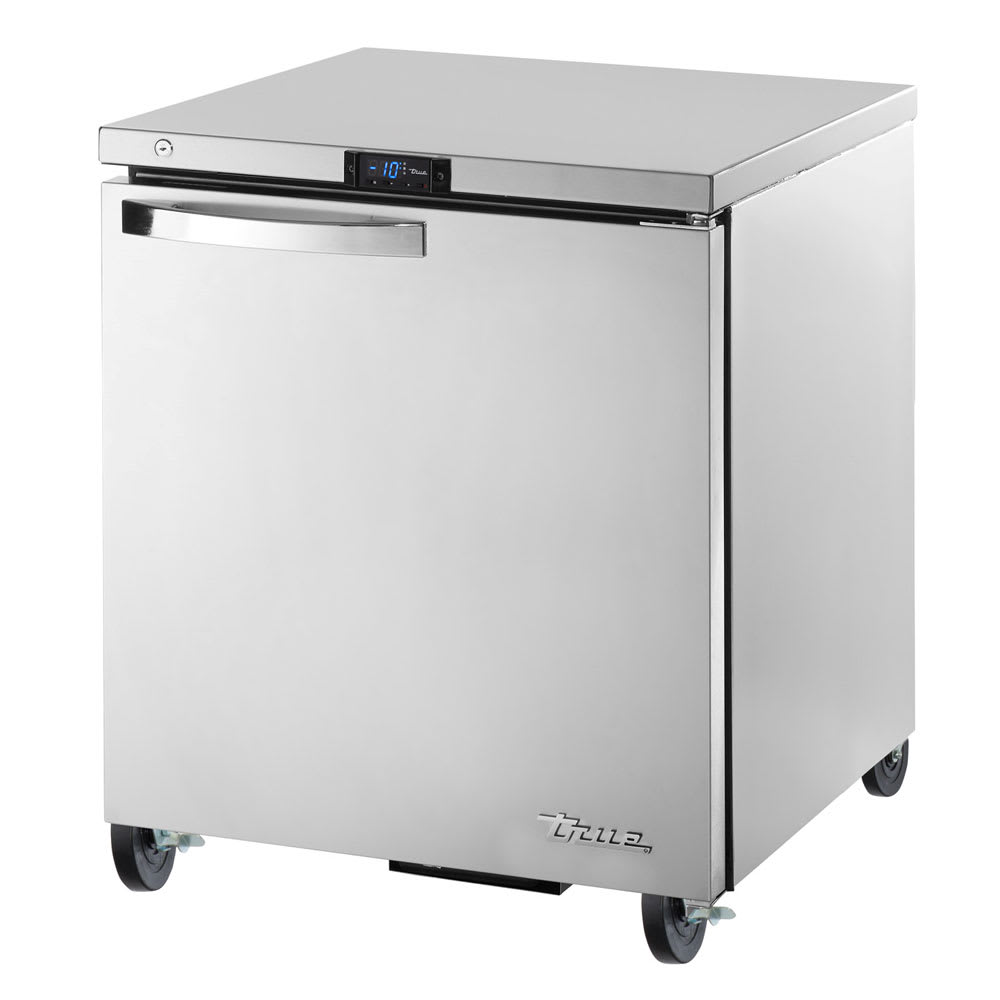

True Refrigeration TUC-27F-HC~SPEC3 Description
The energy-efficient refrigeration system in the True TUC-27F-HC~SPEC1 Spec Series® undercounter freezer is factory balanced and has guided airflow to provide uniform product temperatures. It has a time-initiated, time-terminated automatic defrost system, and because the evaporator and condenser fan motors are electronically commutated, they move a consistent volume of air while reducing heat production and energy use. So it is short enough to fit under a counter, this unit measures 36 inches in height.
This True TUC-27F-HC~SPEC1 undercounter freezer has a factory-balanced refrigeration system that maintains -10 degrees Fahrenheit, ideal for frozen foods and ice cream. Environmentally friendly R290 hydrocarbon refrigerant runs through the self-contained, capillary tube system. Sliding out for maintenance, the condensing unit is located in the back of the cabinet.
Though it shouldn't replace preventive maintenance, reverse condensing fan motor technology helps clean off the condensing coil. The fan automatically blows in reverse for 20 seconds when the compressor is turned on, eliminating debris from the coil. This mechanism help improve overall coil function, and it can even help increase the unit's lifespan.
Product Details
- Part of the Spec Series
- Digital display with electronic temperature control
- Stainless steel front, top, sides, and back
- Standard door lock reduces theft risks
- Heavy-duty, all-metal handle
- 20-ga. doors and 16-ga. top
- Coved corners in the floor of the stainless steel interior
- 2 PVC-coated wire shelves have a heavy-duty construction
- 4 chrome plated shelf clips per shelf
- Shelves can be adjusted on 1⁄2-in. increments
- Shelf support pilasters and cabinet interior are made of the same material
- High-density, polyurethane insulation throughout cabinet structure and solid door
- Countertop front is lined up with the door's front
- Positive-seal, self-closing door swings within cabinet dimensions
- 90-degree stay-open feature for loading and unloading products
- Door gasket has 1-piece, magnetic construction that is removable without tools
- 4 stem castors have locks on front set
- 36-in. work surface height
Energy Efficient Refrigeration System
- Balanced design and guided airflow provide consistent interior temperatures
- Automatic defrost system starts and stops on a time clock
- Epoxy-coated evaporator resists corrosion
- Electronically commutated fan motors are reliable and energy efficient
- Reverse condensing fan motor mehanism helps remove buildup from condensing coil
- Operating temperature: -10 degrees F
- Capillary tube system uses eco-friendly R290 hydrocarbon refrigerant
- Slide-out condensing unit is accessible from the back of cabinet for maintenance
Dimensions & Utilities
- 231⁄4 in. L x 16 in. D
- 275⁄8 in. W x 3215⁄16 in. D x 36 in. H
- 2.3 A, 1⁄4 HP
- 115 V/60 Hz/1 ph, 7-ft. cord with a NEMA 5-15P plug
True Refrigeration TUC-27F-HC~SPEC3 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| Access | Door |
| Application | Undercounter Storage |
| Base | Casters |
| Color | Silver |
| Compressor Location | Rear |
| Cubic Feet | 6.5 |
| Depth (in) | 32 |
| Door Type | Solid |
| Height (in) | 36 |
| Hertz | 60 |
| Interior Construction | Stainless Steel |
| Sections | 1 |
| Voltage | 115 |
| Warranty | 3 years parts & labor/7 years compressor |
| Width (in) | 27.63 |
| Series | Spec Series® |
| Refrigerant | R290 (Hydrocarbon) |
| No. of Doors | 1 |
| Phase | 1 |
| Rating | Better |
| Product | Undercounter Freezers |
| Product Type | Commercial Refrigeration |
| Hinge Configuration | Right |
| Weight | 210.00 |
