Description

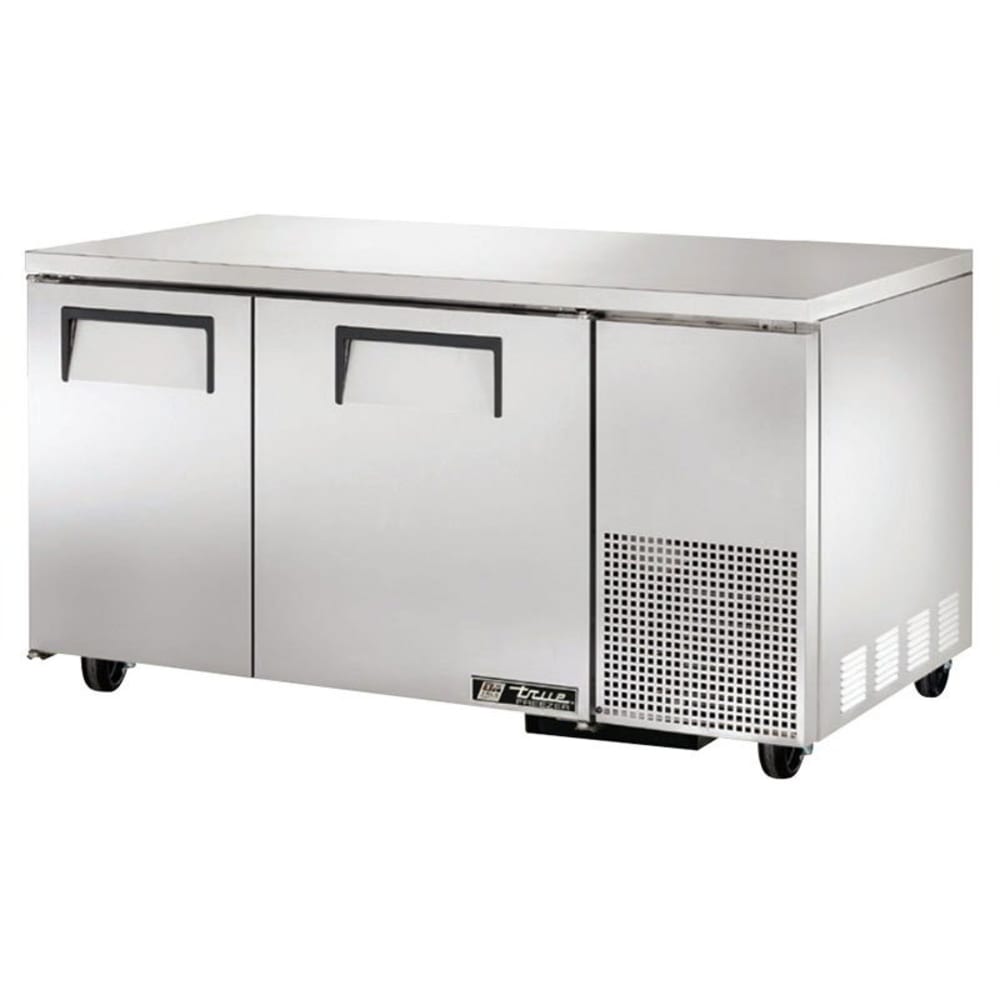

True Refrigeration TUC-60-32F-HC Description
Each shelf in the True TUC-60-32F-HC undercounter freezer includes four chrome-plated shelf clips and can be moved in 1⁄2-inch increments on pilasters that match the interior. A clear aluminum liner covers the unit, which has a rust-resistant stainless steel floor. Removable without tools, the door gaskets have a one-piece, magnetic construction, while a 12-inch-long recessed handle is attached with a sheet metal interlock on each door.
The True TUC-60-32F-HC deep undercounter freezer has a 36-inch work surface height. Its stem castors measure 5 inches in diameter, and the front set of castors lock for stability. This unit's entire cabinet and solid doors are insulated using high-density, polyurethane foam, which, along with gaskets around the doors, helps block out the heat. Air circulates through the interior at a constant speed, so stored food stays at a consistent temperature of -10 degrees Fahrenheit.
Each time the compressor turns on, the condensing fan motor automatically blows in a reverse direction for 20 seconds. This mechanism helps remove buildup, such as dirt and dust, from the condensing coil, enabling it to operate more efficiently, using less energy while keeping products cool. Preventive maintenance is still recommended as a regular practice to ensure the coil is functioning properly.
Product Details
- Each shelf includes 4 chrome-plated shelf clips
- Same material constructs the shelf support pilasters and cabinet interior
- Shelves can be moved in 1⁄2-in. increments
- Clear aluminum door liner and stainless steel exterior match the cabinet
- Positive-seal doors move within cabinet dimensions
- Door gaskets are magnetic and removable without tools
- 12-in.-long recessed handle is foamed-in-place onto each door
- Clear-coated aluminum lines interior
- Stainless steel floor has coved corners
- 36-in. work surface height
- 5-in.-diameter stem castors have a locking front set
- Cabinet and doors are insulated with high-density, polyurethane
- Exterior consists of stainless steel on ends, top, and front, with an anti-corrosion GalFan-coated steel back
Energy-efficient Refrigeration System
- Fans move a consistent air volume through the cabinet
- Guided airflow provides uniform product temperatures
- Front grille slides out for condensing unit maintenance
- Evaporator is coated in epoxy to reduce corrosion risks
- Operating temperature: -10 degrees F
- Auto-defrost system is time-initiated and time-terminated
- Capillary tube system is self-contained and uses R290 hydrocarbon refrigerant
- Reverse condensing fan motor technology reverses for 20 seconds when compressor turns on
Dimensions & Utilities
- 2 right shelves: 235⁄8 in. L x 28 in. D
- 2 left shelves: 171⁄4 in. L x 28 in. D
- Overall: 601⁄4 in. W x 333⁄16 in. D x 3515⁄16 in. H
- 5.8 A, 1⁄2 HP
- 115 V/60 Hz/1 ph, 7-ft. cord with a NEMA 5-15P plug
